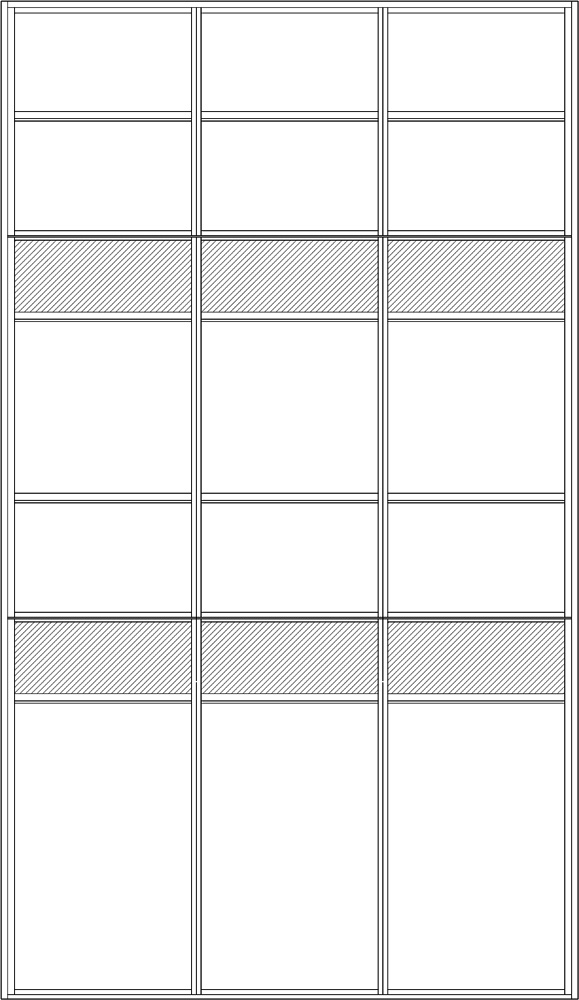

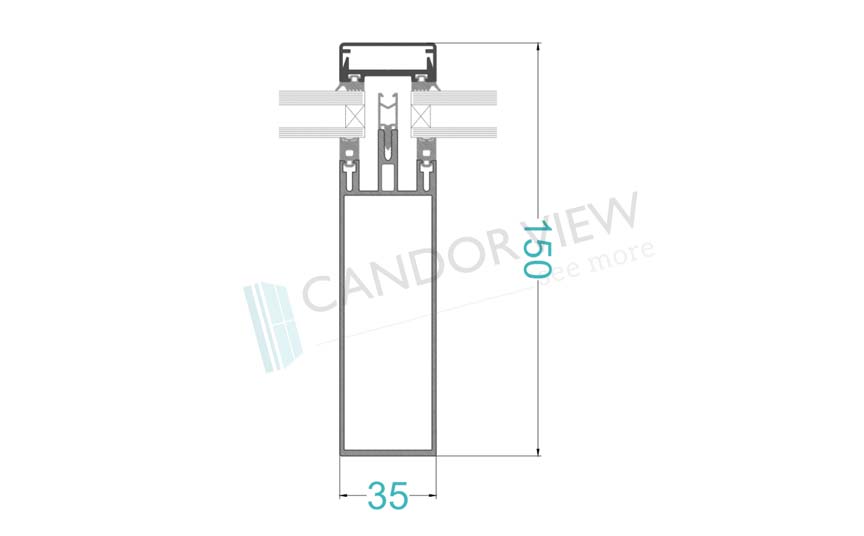

PS Wall 30 is the slim version within the curtain wall systems, with especially reduced sight lines of just 35 mm both inside and outside. The exterior glazing profiles with MITRE joints achieve a particularly elegant appearance with a “picture frame effect”. Additional functions for security and maximum thermal insulation may be included simply and inexpensively, without compromising on aesthetics.
The extruded aluminum sections are made from 6060 and 6063 alloy composition with polyamide strip, in order to fulfill system requirements and suitable for high thermal insulation and compatibility for anodizing or painting.
GasketBoth static and dynamic gaskets are realized in EPDM (ethylene propylene diene monomer). The retention brushes are in high-density propylene with central water stripping.
AccessoriesPatented accessories, made with the best materials, have been studied for an easy, rational use. The hinges are Stainless Steel to take maximum load.
GlazingThe system can integrate glazed used from 6mm to 38mm thick glass. Glass blocking must be done through internal/external gaskets in EPDM. The possible infiltration water must be drained outwards, as in the system.
