The new PS 62 TH swing thermal break system provides the required energy saving combined with best security and reliability. The system is designed in line with the latest global trends with straight lines with the reduced aluminum frame.
The extruded aluminum sections are made from 6060 and 6063 alloy composition with polyamide strip, in order to fulfill system requirements and suitable for high thermal insulation and compatibility for anodizing or painting.
GasketBoth static and dynamic gaskets are realized in EPDM (ethylene propylene diene monomer). The retention brushes are in high-density propylene with central water stripping.
AccessoriesPatented accessories, made with the best materials, have been studied for an easy, rational use. The hinges are Stainless Steel to take maximum load.
GlazingThe system can integrate glazed used from 6mm to 38mm thick glass. Glass blocking must be done through internal/external gaskets in EPDM. The possible infiltration water must be drained outwards, as in the system.

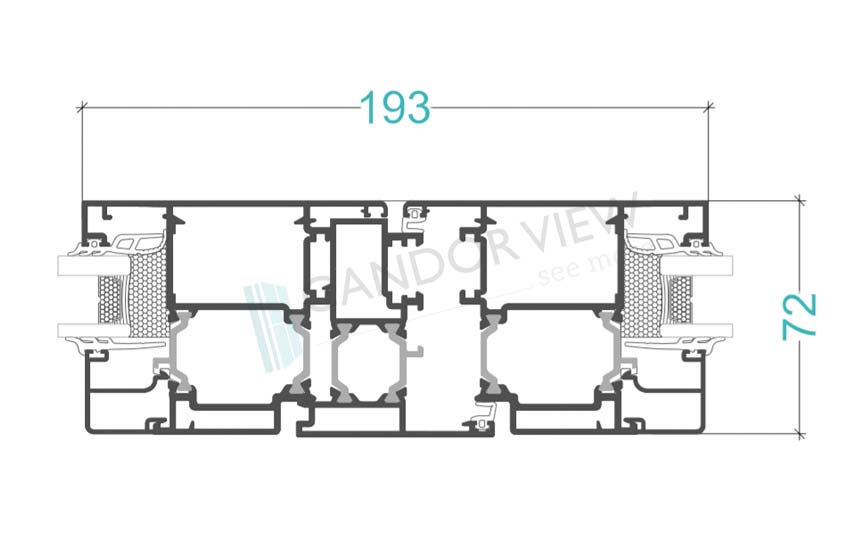

Depth of outer Frames | 62 mm |
Depth of sash | 72 mm |
Application | Bed Room, living Rooms |
Glass | Minimum: 24 mm |
