This is an highly insulated sliding system that has been designed in lines with the latest global trends and demands for insulation, aesthetics and security. With a slimmer The profile width its allows for maximum natural light.
The extruded aluminum sections are made from 6060 and 6063 alloy composition with polyamide strip, in order to fulfill system requirements and suitable for high thermal insulation and compatibility for anodizing or painting.
GasketBoth static and dynamic gaskets are realized in EPDM (ethylene propylene diene monomer). The retention brushes are in high-density propylene with central water stripping.
AccessoriesPatented accessories, made with the best materials, have been studied for an easy, rational use. The ball bearings are made from Stainless Steel to take maximum load.
GlazingThe system can integrate glazed used from 6 mm to 30 mm thick glass. Glass blocking must be done through internal/external gaskets in EPDM. The possible infiltration water must be drained outwards, as in the system.

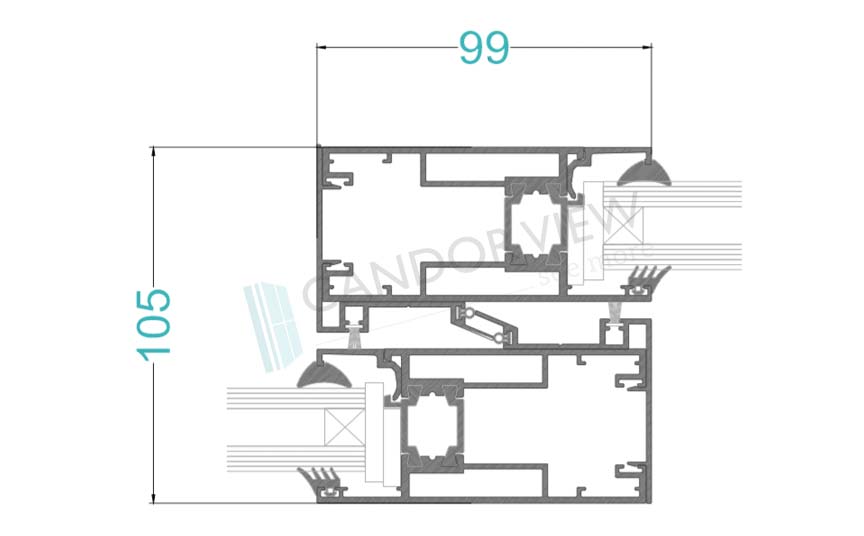

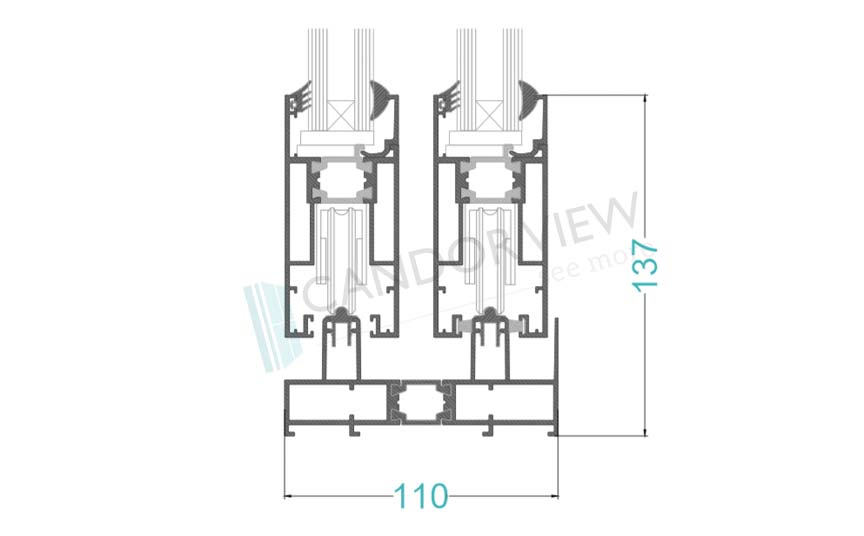

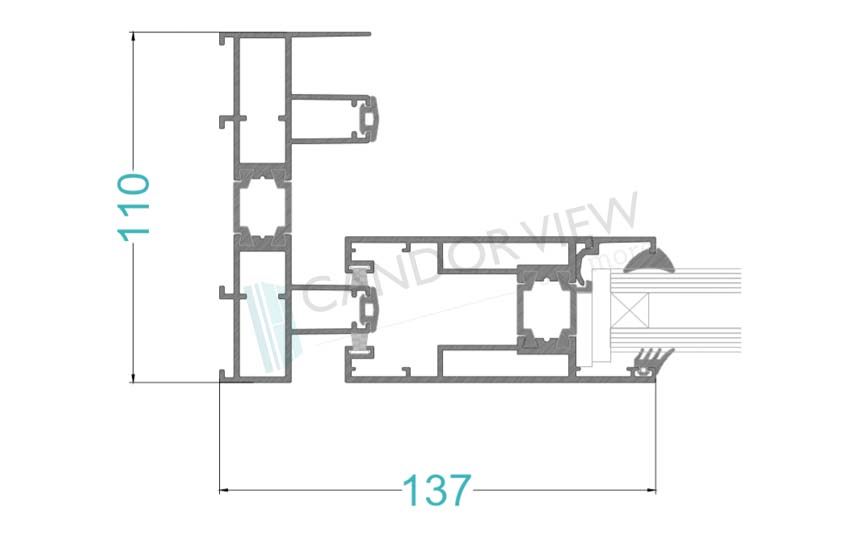

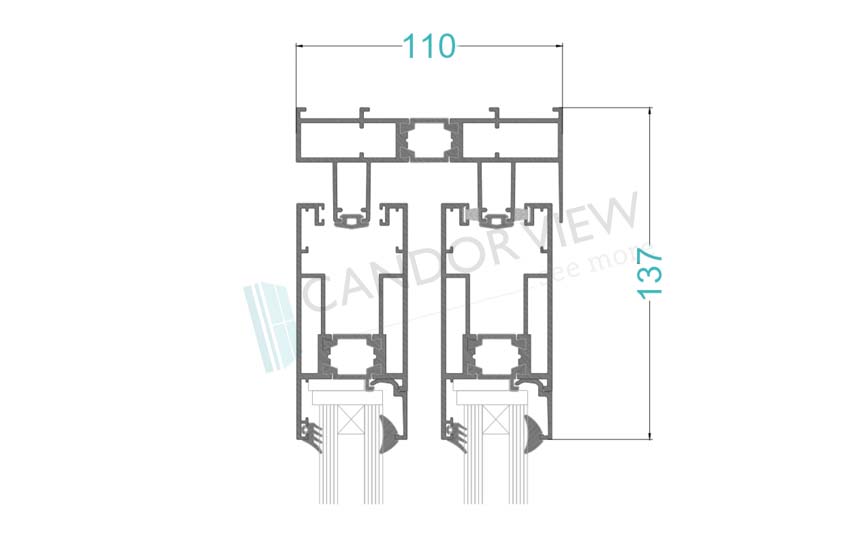

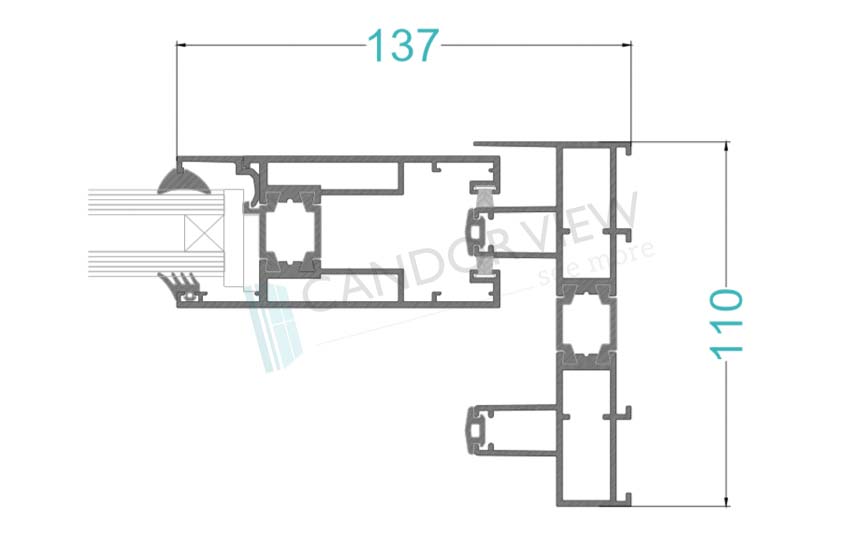

Depth of outer Frames | 110 mm |
Depth of sash | 46 mm |
Application | Bed Room, living Rooms, |
Glass | Minimum: 26 mm |
