PS LINEA 137 TH highly insulated series is the top evolution of the minimal frame system. The system meets global design, thermal and acoustic requirements with the help of exceptional binding polyamides and high energy performance glasses. PS LINEA 137 TH is available in double or triple glass windows with surface area up to 18 Sqm and can accommodate glass units upto 42 mm.
The extruded aluminum sections are made from 6060 and 6063 alloy composition with polyamide strip, in order to fulfill system requirements and suitable for high thermal insulation and compatibility for anodizing or painting.
GasketBoth static and dynamic gaskets are realized in EPDM (ethylene propylene diene monomer). The retention brushes are in high-density propylene with central water stripping.
AccessoriesPatented accessories, made with the best materials, have been studied for an easy, rational use. The ball bearings are made from Stainless Steel to take maximum load.
GlazingThe system can integrate glazed used from 12mm to 38mm thick glass. Glass blocking must be done through internal/external gaskets in EPDM. The possible infiltration water must be drained outwards, as in the system.

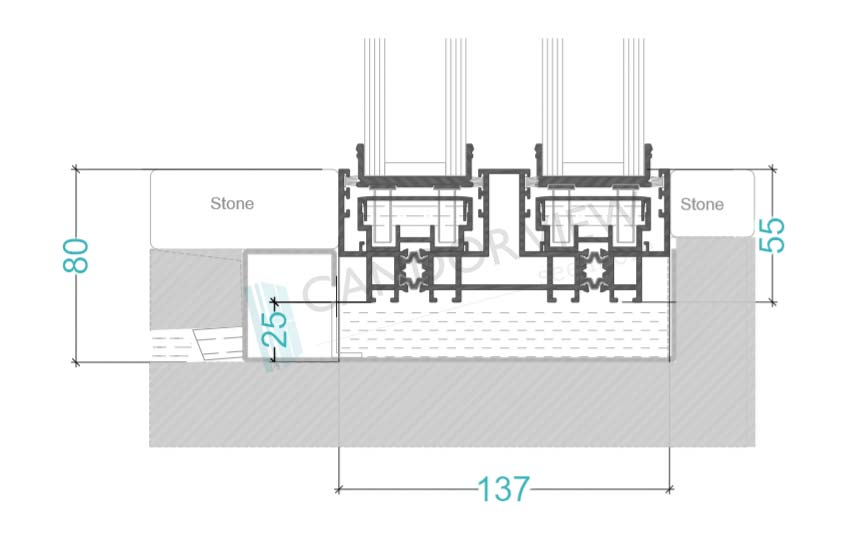

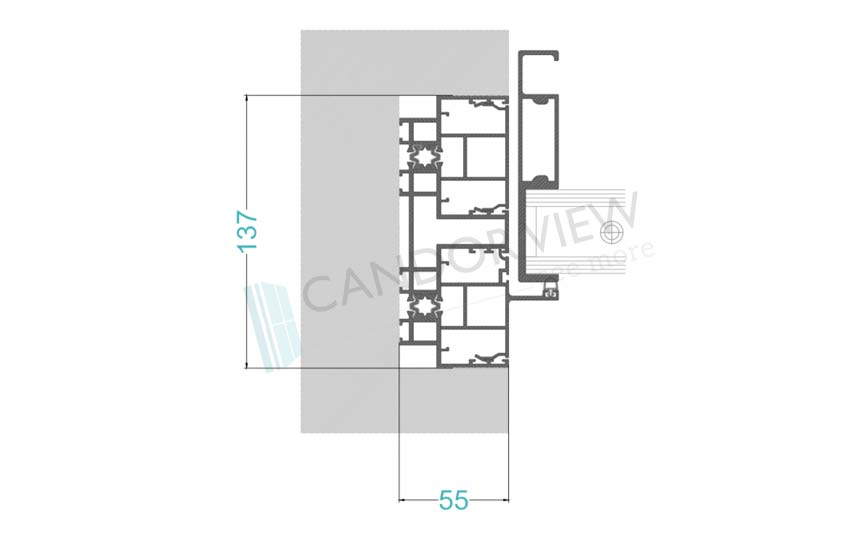

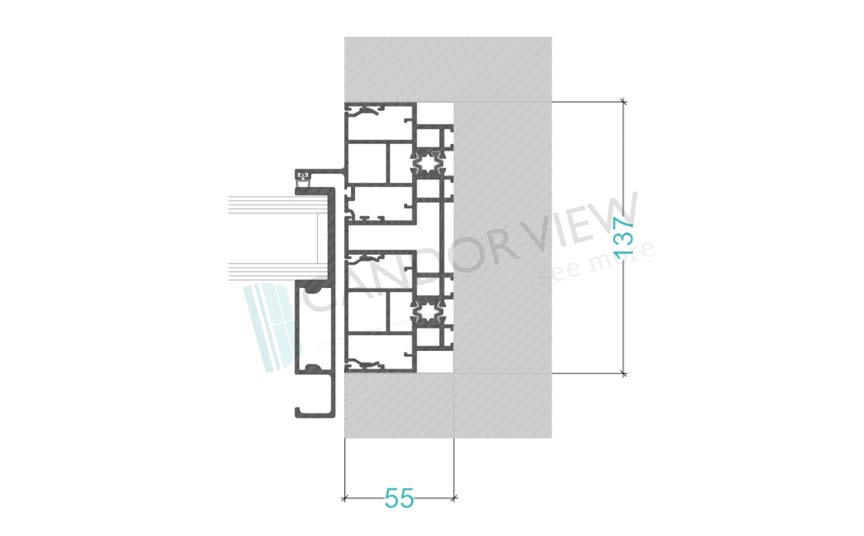

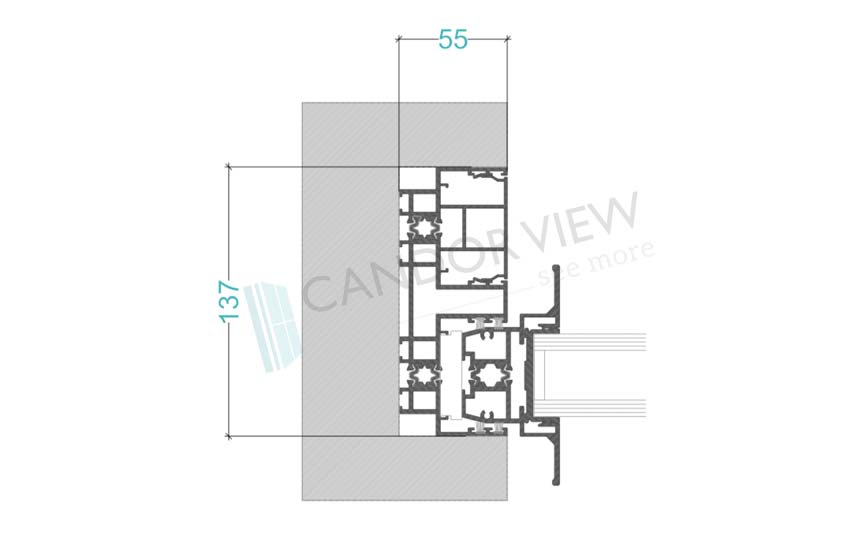

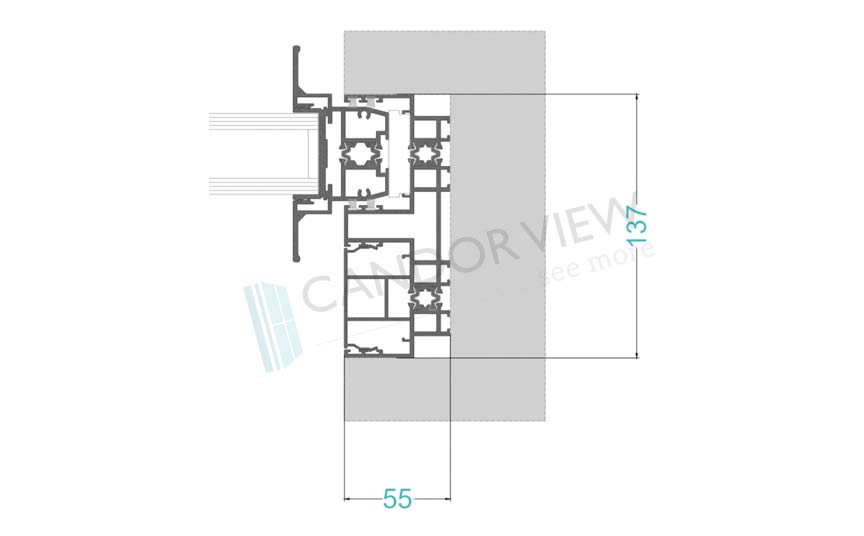

Depth of outer Frames | 137 mm |
Depth of sash | 48 mm |
Application | Bed Room, living Rooms |
Glass | Minimum: 26 mm |
